NTS-1700-148US

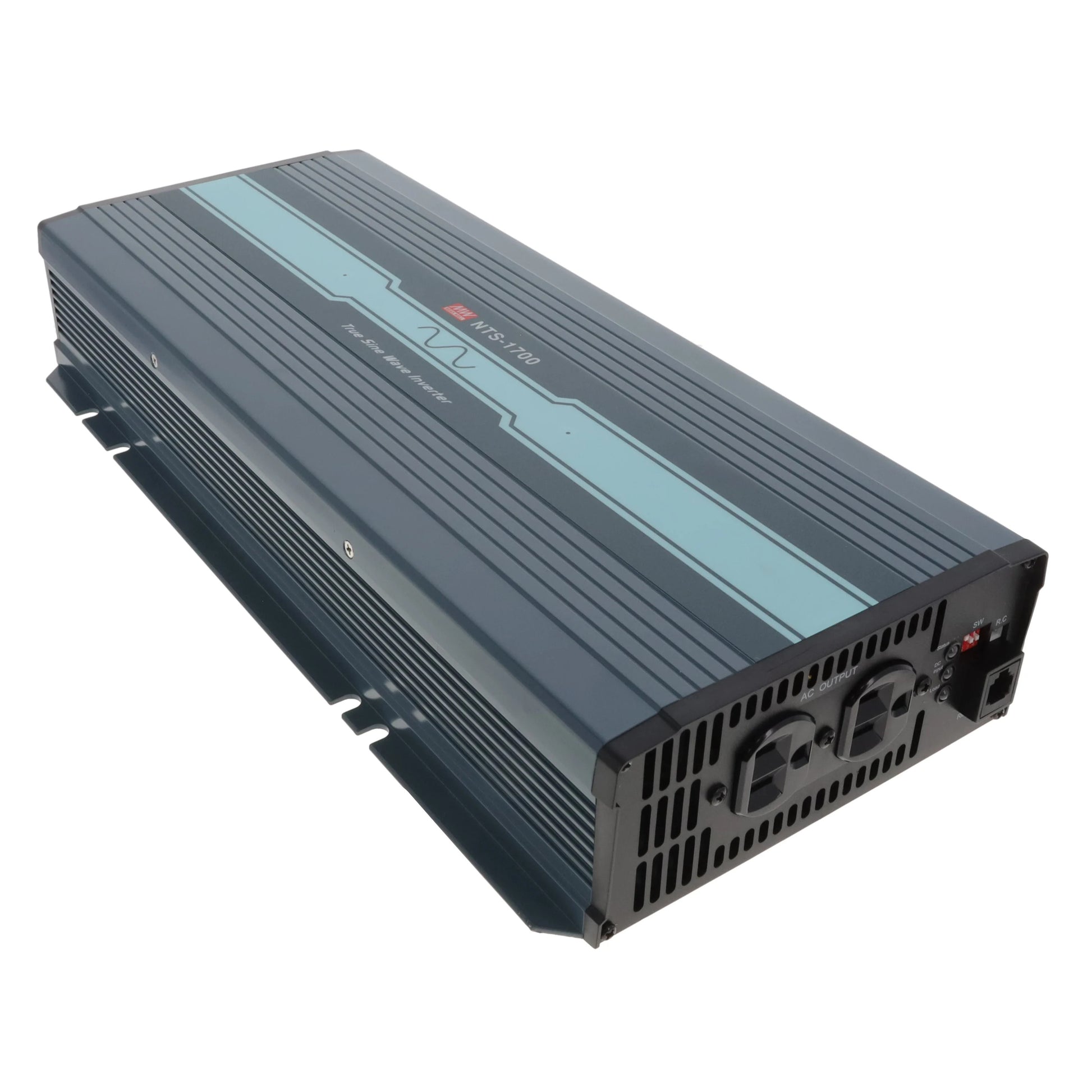

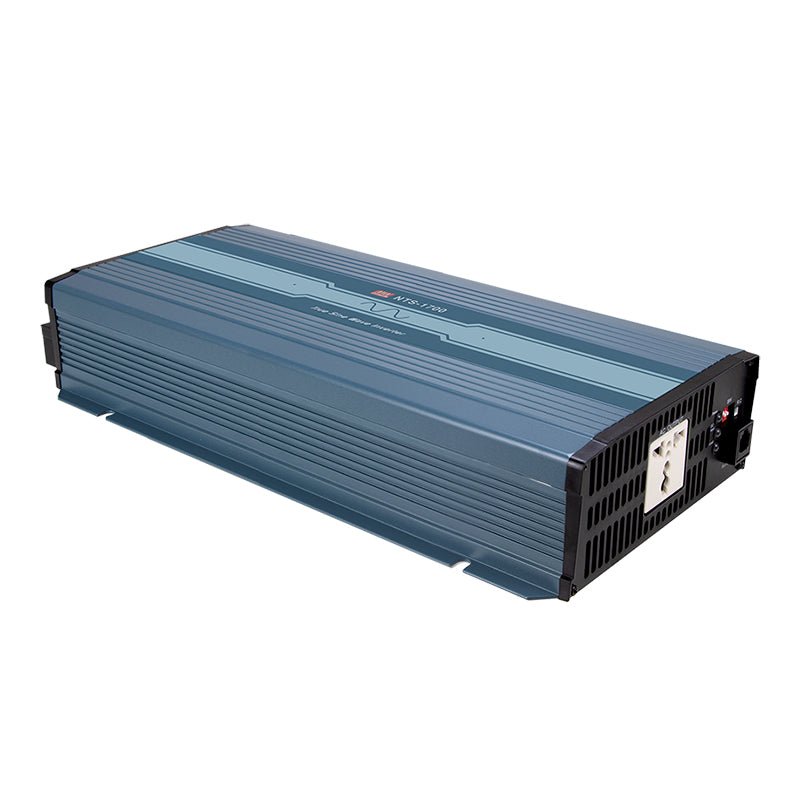

MEAN WELL NTS-1700-148US — 48 VDC to 110 VAC True Sine Wave Inverter

Power reliability meets precision engineering in the MEAN WELL NTS-1700-148US. Engineered for off-grid, mobile, and backup power systems, this inverter delivers clean AC power with advanced protections and flexible operation.

🔋 Key Features

• True sine wave output (THD < 3%) ensures clean, stable power for sensitive electronics (computers, TVs, appliances).

• Continuous output power: 1,500 W (typical) with surge capacity up to 3,400 W (for short peaks)

• Wide input voltage range: 40 ~ 66 VDC — ideal for 48 V battery banks Selectable AC output settings: DIP-switch allows selection among 100 / 110 / 115 / 120 VAC (factory preset 110 V)

• Robust protection features:
    • Input: reverse polarity protection, low DC alarm/shutdown, overvoltage protection
    • Output: short circuit, overload, over-temperature protection

• Remote ON/OFF control support for flexible system integration

• Thermal management: built-in, temperature-controlled fan keeps internal temperatures in check

• Efficiency & low idle draw: up to ~93% efficiency; no-load standby draw ≤ 1.5 W

• Wide operating temperature: –25 °C to +70 °C without performance degradation

• Certifications: CB, DEKRA, E13, UL, FCC, CE, UKCA (meets global safety and compliance standards)
