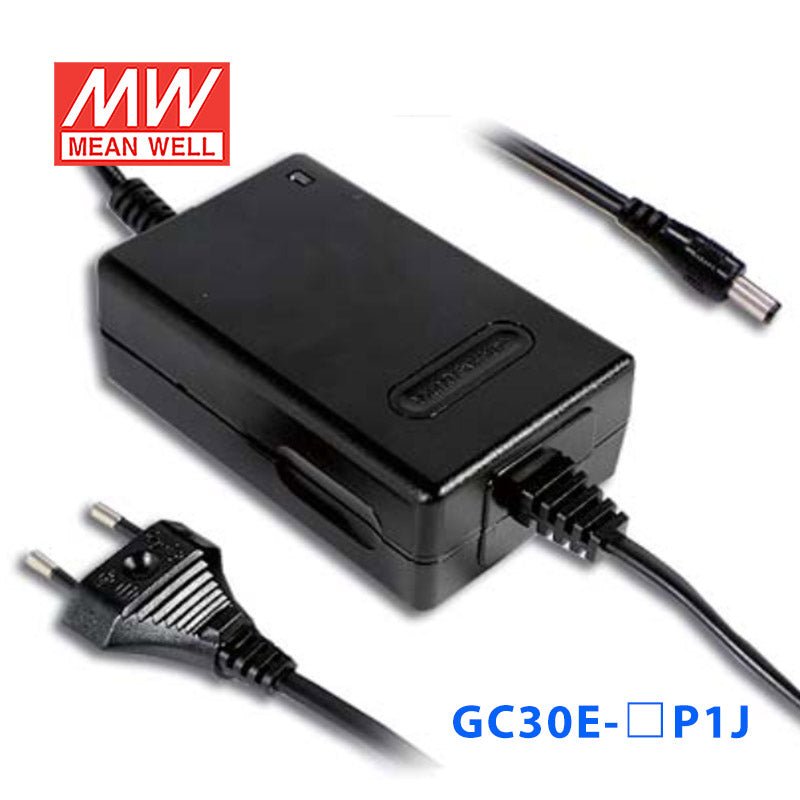

GC30E-1P1J

Name: GC30E-1P1J
Brand: MEAN WELL
Availability: OutOfStock

$0.00

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$0.00

20+

$0.00

50+

$0.00

100+

$0.00

200+

$0.00

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

5.6V

Rated Current

3.99A

Power Rating

22.38W

Waterproof

Non-waterproof

Dimensions

4.25 x 2.63 x 1.41 in

Weight

0.89 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range

With Euro type 6FT power cord(2pin)

Class II power(without earth pin)

No load power consumption < 1.0W

Constant current and voltage(CC, CV mode)

Suitable for continued load

For high surge current equipment

Protections: Short circuit / Overload / Over voltage / Over Temp.

2 color LED indicator for charging status

Fully enclosed plastic case

High reliability

Approvals:TUV/UL/CUL/CB/FCC/CE

2 years warranty

General Specification

AC input voltage range	90~264VAC \| 127~370VDC
AC inrush current	40A / 230VAC
Over-voltage protection	110%~135% Shut down and latch off o/p voltage, re-power on to recover
Withstand voltage	I/P-O/P:3KVAC
Working temperature	-0~+50°C (refer to derating curve)
Safety standards	UL62368-1, CSA22.2, EAC TP TC 004 approved
EMC standards	EN55022 class B, FCC part 15 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH)	108 x 67 x 36 mm
Packing	405g; 36pcs / 16.5kg / CARTON
