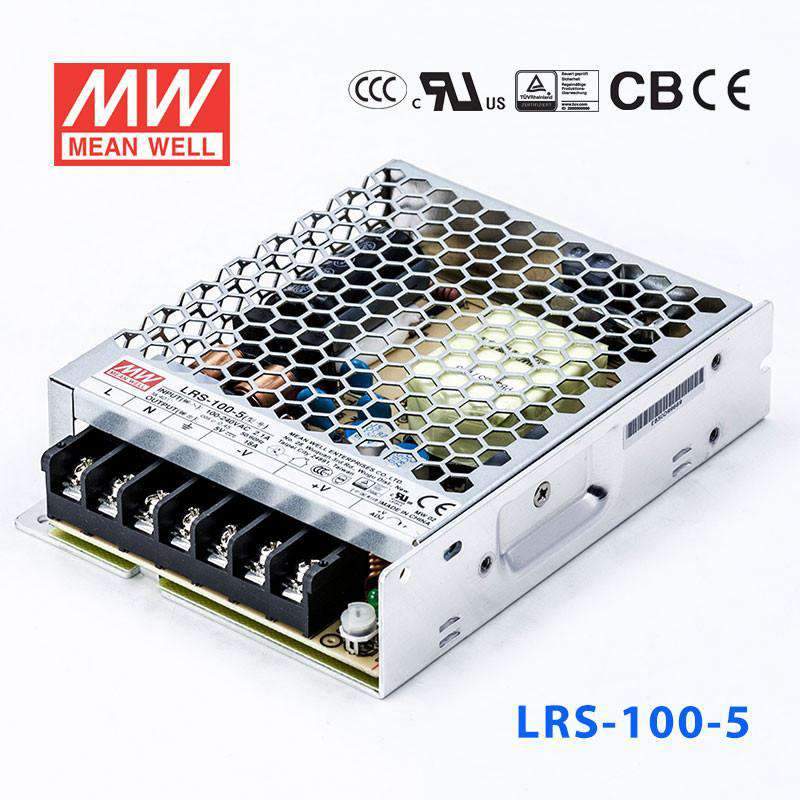

LRS-100-5

• Universal AC input / Full range
• Output: 5V, 18A, 90W
• Withstands 300VAC surge input for 5 seconds
• Protections: Short circuit / Overcurrent / Overvoltage
• Cooling by free air convection
• Miniature size and low-profile 1U design
• Compliance with IEC / EN 60335-1 (PDE) and IEC / EN 61558-1, 2-16 for household appliances
• Operating altitude up to 5000 meters (Note 7)
• Withstands 5G vibration test
• LED power indicator
• No-load power consumption <0.3W
• Overvoltage category III
• 100% full-load burn-in test
• High operating temperature up to 70°C
• High efficiency, long lifespan, and high reliability

Applications

• Industrial automation machinery
• Industrial control system
• Mechanical and electrical equipment
• Instruments, equipment, or electronic devices
• Household appliances

Description

The LRS-100 series is a 100W enclosed-type single-output power supply with a low-profile 30mm design. Adopting a full-range input of 85 ~ 264VAC, the entire series provides a voltage output line of 3.3V, 5V, 12V, 15V, 24V, 36V, and 48V.
In addition to its high efficiency of up to 91%, the metal mesh housing design enhances heat dissipation for the LRS-100, allowing the entire series to operate from -30°C to 70°C under air convection without a fan. With extremely low no-load power consumption (less than 0.3W), it enables the end system to easily meet global energy requirements. The LRS-100 features comprehensive protection functions and 5G vibration resistance capability, complying with international safety standards such as TUV EN2368-1, EN60335-1, EN61558-1 / -2-16, UL62368-1, and GB4943. The LRS-100 series serves as a highly cost-effective power supply solution for various industrial applications.
