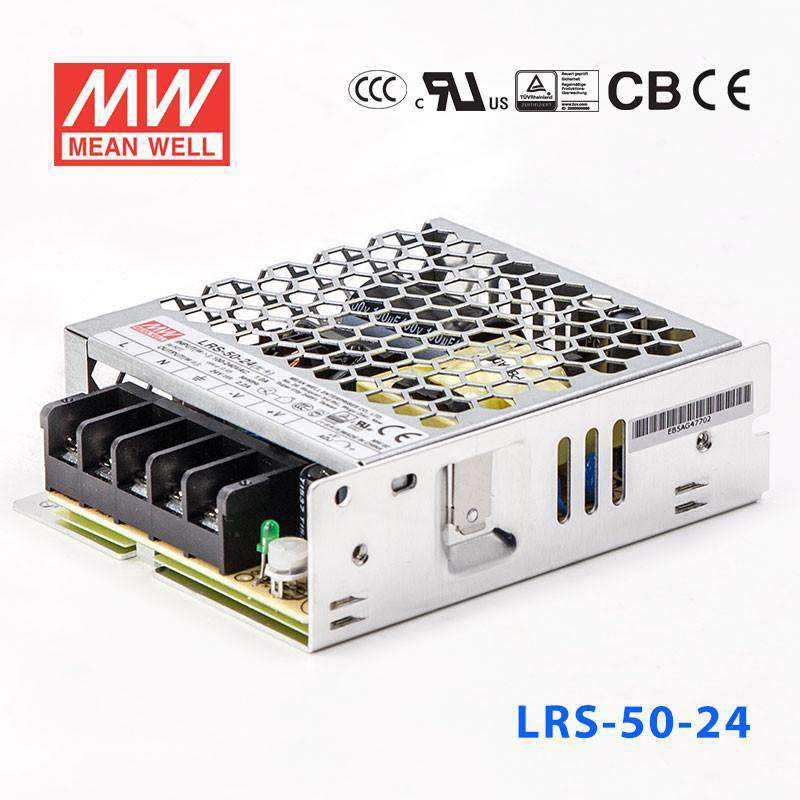

LRS-50-24

• Universal AC input / full range
• Output: 24V, 2.2A, 52.8W
• Withstands 300VAC surge input for 5 seconds
• No-load power consumption <0.2W
• Miniature size and 1U low-profile design
• High operating temperature up to 70°C
• Protections: Short circuit / Overload / Overvoltage / Overtemperature
• Cooling by free air convection
• Compliance with IEC / EN 60335-1 (PD3) and IEC / EN61558-1, 2-16 for household appliances
• Operable at altitudes up to 5000 meters (Note 8)
• Withstands 5G vibration test
• High efficiency, long lifespan, and high reliability
• LED power indicator
• Overvoltage category III
• 100% full-load burn-in test

Applications

• Industrial automation machinery
• Industrial control system
• Mechanical and electrical equipment
• Instruments, equipment, or electronic devices
• Household appliances

Description

The LRS-50 series is a 50W single-output enclosed-type power supply with a 30mm low-profile design. Adopting a full-range input of 85~264VAC, the entire series provides an output voltage line of 3.3V, 5V, 12V, 15V, 24V, 36V, and 48V.
In addition to its high efficiency of up to 90%, the metal mesh case design enhances heat dissipation, allowing the LRS-50 series to operate from -30°C to 70°C under free air convection without a fan. With an extremely low no-load power consumption (less than 0.2W), it enables the final system to easily meet global energy requirements. The LRS-50 features comprehensive protection functions and 5G vibration resistance capability; it complies with international safety standards such as TUV EN2368-1, EN60335-1, EN61558-1/-2-16, UL62368-1, and GB4943. The LRS-50 series serves as a high-value power supply solution for various industrial applications.
