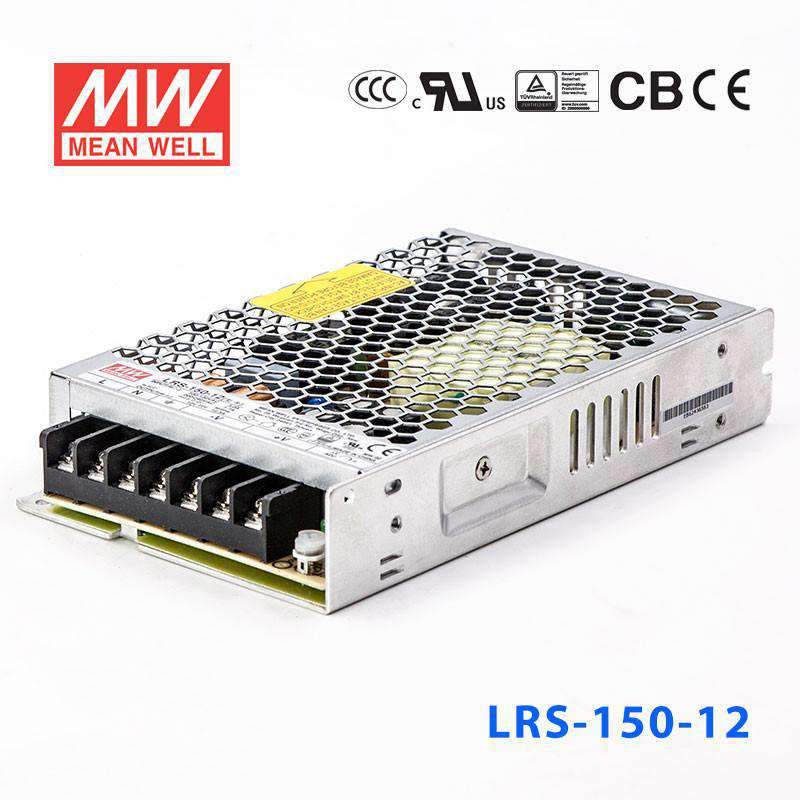

LRS-150-12

• Selectable AC input range via switch
• Output: 12V, 12.5A, 150W
• Withstands 300VAC surge input for 5 seconds
• No-load power consumption <0.5W
• Miniature size and low-profile 1U design
• High operating temperature up to 70°C
• Protections: Short circuit / Overload / Overvoltage / Overtemperature
• Cooling by free air convection
• Compliance with IEC / EN 60335-1 (PD3) and IEC / EN 61558-1, 2-16 for household appliances
• Operating altitude up to 5000 meters
• Withstands 5G vibration test
• High efficiency, long lifespan, and high reliability
• LED power indicator
• Overvoltage category III
• 100% full-load burn-in test

Applications

• Industrial automation machinery
• Industrial control system
• Mechanical and electrical equipment
• Instruments, equipment, or electronic devices
• Household appliances

Description

The LRS-150 series is a 150W enclosed-type single-output power supply with a low-profile 30mm design. Adopting either 115VAC or 230VAC input (selectable via switch), the entire series provides an output voltage range of 12V, 15V, 24V, 36V, and 48V. In addition to its high efficiency of up to 90%, the metal mesh housing design enhances heat dissipation for the LRS-150, allowing the entire series to operate from -30°C to 70°C under air convection without a fan. With an extremely low no-load power consumption (less than 0.5W), it enables the end system to easily meet global energy requirements. The LRS-150 features comprehensive protection functions and 5G vibration resistance capability, complying with international safety standards such as TUV EN62368-1, EN60335-1, EN61558-1 / -2-16, UL62368-1, and GB4943. The LRS-150 series serves as a cost-effective power supply solution for various industrial applications.
