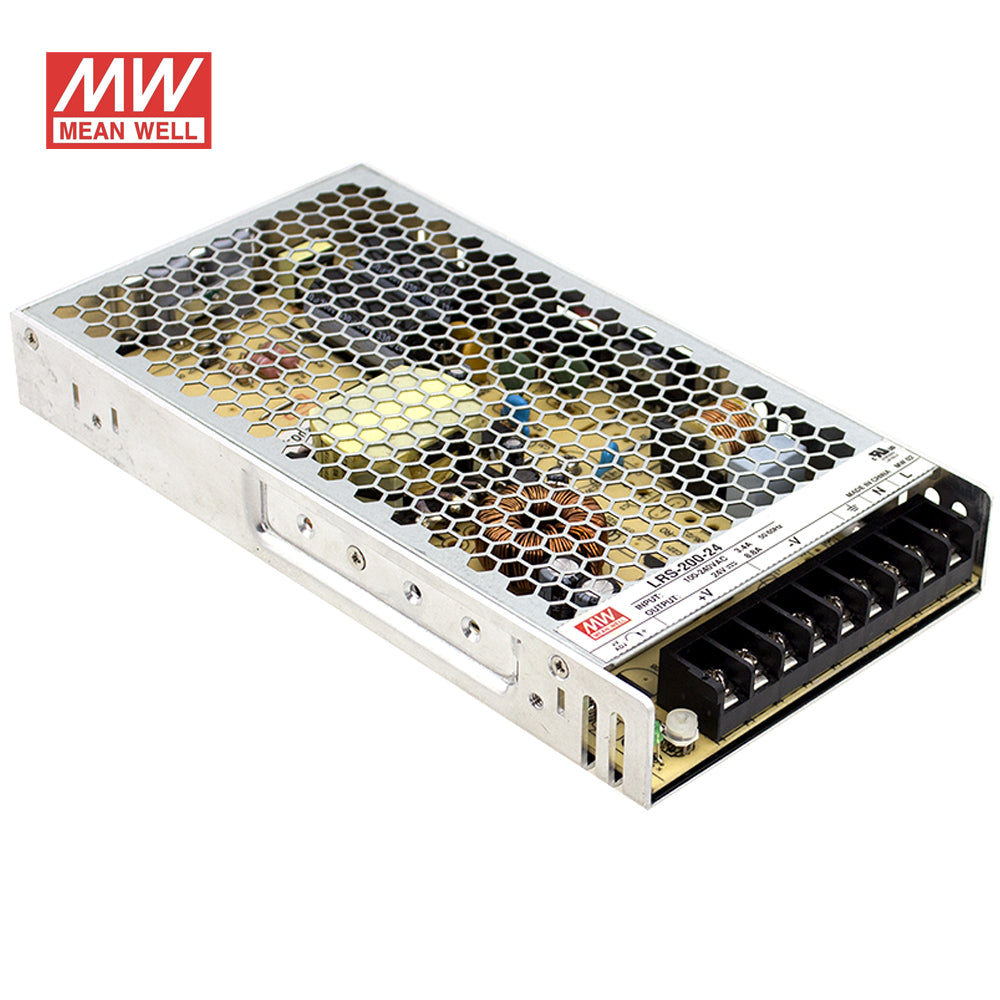

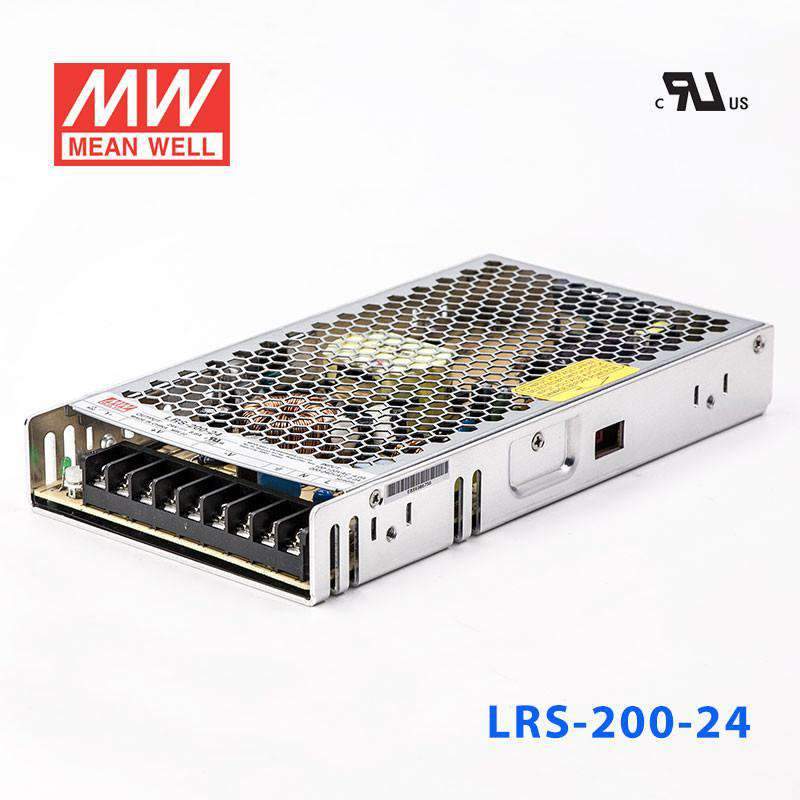

LRS-200-24

• AC input range selectable by switch
• Output: 24V, 8.8A, 211.2W
• Withstands 300VAC surge input for 5 seconds
• Protections: Short circuit / Overload / Overvoltage / Overtemperature
• Cooling by free air convection
• Low-profile 1U design
• Withstands 5G vibration test
• LED power indicator
• No-load power consumption <0.75W
• 100% full-load burn-in test
• Operating temperature up to 70°C
• Operating altitude up to 5000 meters (Note 8)
• High efficiency, long lifespan, and high reliability

Applications

• Industrial automation machinery
• Industrial control systems
• Mechanical and electrical equipment
• Instruments, equipment, or electronic devices

Description

The LRS-200 series is a 200W enclosed-type single-output power supply with a low-profile 30mm design. Adopting a 115VAC or 230VAC input (selectable by switch), the entire series provides an output voltage range of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V, and 48V.

In addition to its high efficiency of up to 90%, the metal mesh housing design enhances heat dissipation, allowing the LRS-200 series to operate in a range of -25°C to 70°C under air convection without a fan. With an extremely low standby power consumption (less than 0.75W), it enables the end system to easily meet global energy requirements. The LRS-200 series features comprehensive protections and 5G vibration resistance, complying with international safety standards such as TUV EN62368-1, EN60335-1, EN61558-1/-2-16, UL62368-1, and GB4943. This makes it a power supply solution with an excellent price-performance ratio for various industrial applications.
