MEAN WELL
LRS-50-5
LRS-50-5
Couldn't load pickup availability

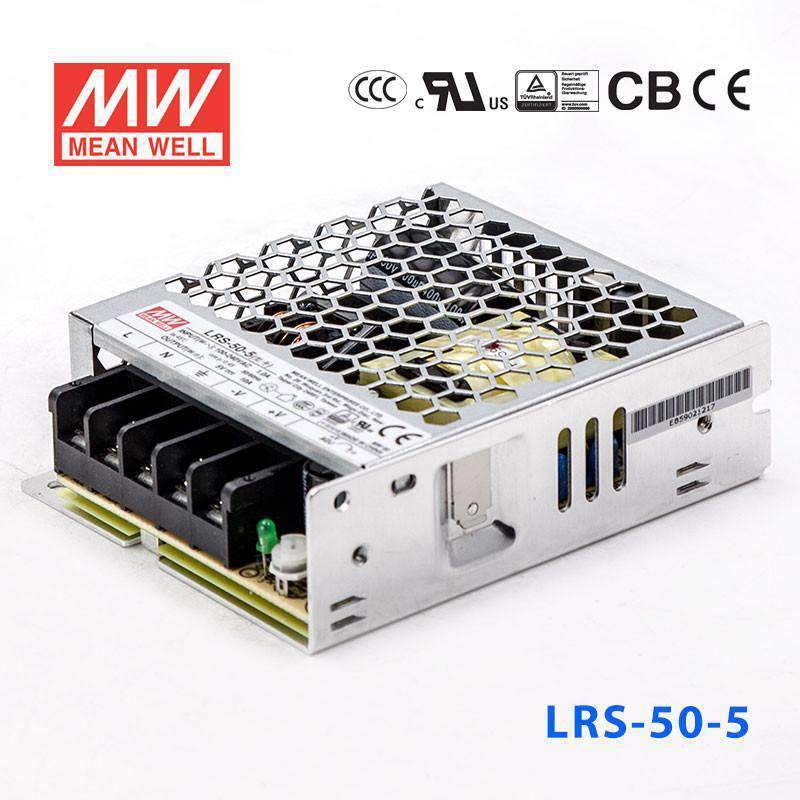

Mean Well LRS-50-5 – 50W Single Output Enclosed Power Supply (5V, 10A)
Overview
The LRS-50-5 is a 50W enclosed power supply that provides a stable 5V DC output at 10A. With its compact design, metal enclosure, and fanless cooling by free air convection, this unit is highly efficient and reliable for low-voltage, high-current applications.
Key Features
-
Output Power: 50W
-
Output Voltage: +5V ⎓ 10A
-
Universal AC input: 85 ~ 264VAC / 120 ~ 373VDC
-
High efficiency up to 86%
-
Protections: Short circuit / Overload / Overvoltage / Overtemperature
-
Cooling by free air convection (no fan required)
-
LED indicator for power status
-
Compact size: 99 × 82 × 30 mm
-
High reliability with MTBF over 700,000 hours
-
Warranty: 2 years
Typical Applications
-
Embedded systems and microcontrollers
-
IoT devices and home automation
-
Industrial control and instrumentation
-
Security systems
-
LED signage and displays
Datasheet:
