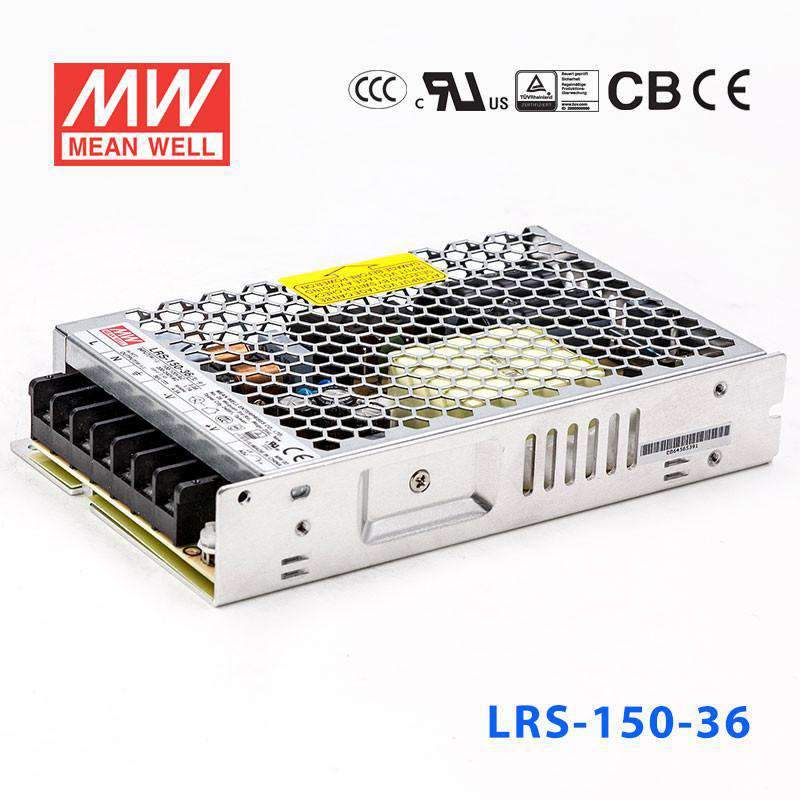

LRS-150-36

LRS-150-36

$19.50 - $19.50
$19.50
$19.50 - $19.50
$19.50
Availability:
30 in stock, ready to be shipped
Output Voltage: 36V
Rated Current: 4.3A
Power Rating: 154.8W
Quantity Prices
Quantity
Unit Price
10+
$18.53
20+
$18.14
50+
$17.75
100+
$17.36
200+
$16.97
*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Place your order within --:--:-- to ensure shipment Today
Quantity

Features:

No load power consumption <0.5W for 150W;  <0.75W for 200W/350W
AC input selectable by switch
Withstand 300VAC surge input for 5 seconds
Ultra compact and 1U low profile
Withstand 5G vibration test
High operating temperature up to 70oC
Protections:  Short circuit / Overload / Over voltage / Over temp.
Cooling by free air convection (150W/200W);  forced air cooling by built-in DC fan (350W)
Compliance to IEC/EN60335-1(PD3) and  IEC/EN61558-1,-2-16 for household appliances (150W)
Operating altitude up to 5000 meters
LED indicator for power on
High efficiency, long life and high reliability
Low cost
3 years warranty


General Specification

AC input voltage range 115 / 230VAC by switch
AC inrush current (max.) Cold start, 60A at 230VAC
DC adjustment range ±10% by potentiometer
Overload protection Range 110%~140%
Overload protection Type Hiccup mode, auto-recovery
Over voltage protection Range 115%~145% rated output voltage
Over voltage protection Type Shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC
Working temperature -30~+70°C (refer to output derating curve)
Safety standards UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved
EMC standards EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254
Connection 7P/9.5mm pitch terminal block
Dimension (LxWxH) 159x 97x 30

LRS-150 series
