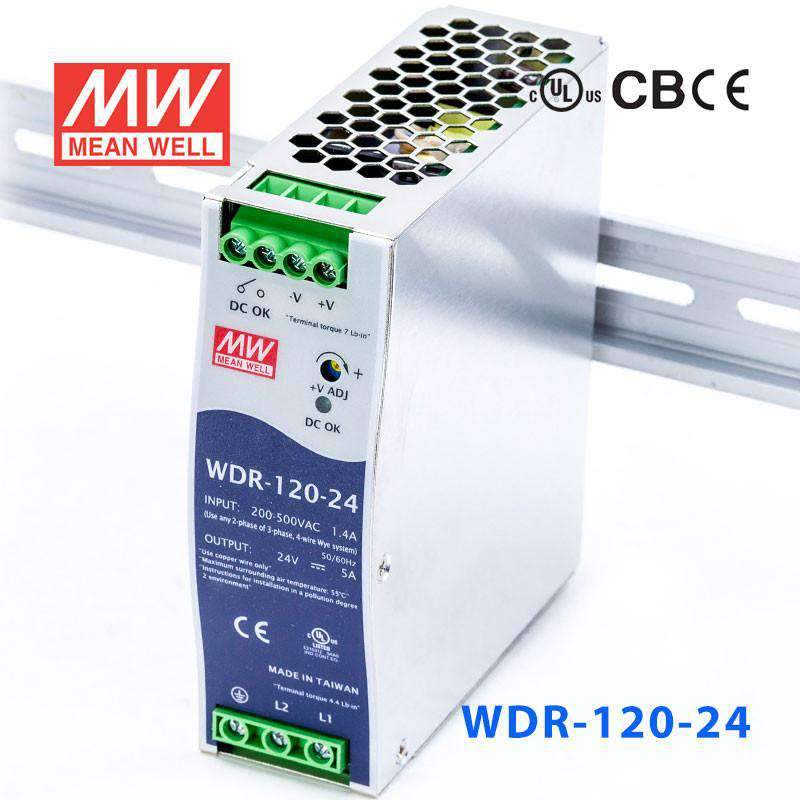

WDR-120-24

WDR-120-24

$60.68 - $60.68
$60.68
$60.68 - $60.68
$60.68
Availability:
20 in stock, ready to be shipped
Place your order within --:--:-- to ensure shipment Today
Quantity Prices
Quantity
Unit Price
10+
$57.65
20+
$56.43
50+
$55.22
100+
$54.01
200+
$52.79
*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Features

Single and two phase wide input range 180~550VAC
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
Can be installed on DIN rail TS-35 / 7.5 or 15
UL508(industrial control equipment) approved
EN61000-6-2(EN50082-2) industrial immunity level
Built-in DC OK relay contact
100% full load burn-in test
3 years warranty

General Specification

AC input voltage range 180~550VAC(single and two phase); 254~780VDC
AC input current 0.55A / 400VAC, 1.2A / 230VAC
AC inrush current (max.) Cold start, 50A at 400VAC
DC adjustment range 12V: 12~15V, 24V: 24~29V, 48V: 48~58V
Overload protection 105%~130% rated output power, constant current limiting, auto-recovery
Over voltage protection Range 16~18V for 12V model (only for WDR-120), 29~33V for 24V model, 56~65V for 48V model
Over voltage protection Type Shut down o/p voltage, auto-recovery
Setup, rise, hold up time 2000ms, 70ms, 10ms at full load and 230VAC; 2000ms, 70ms, 50ms at full load and 400VAC
Over temp. protection Shut down output voltage, recovers automatically after temperature goes down
Withstand voltage I/P-O/P:3kVAC, I/P-FG:1.5kVAC, O/P-FG:0.5kVAC, O/P-DC OK:0.5kVAC, 1 minute
Working temperature -25~+70°C (refer to output derating curve)
DC OK signal Relay Contact
Leakage current <3.5mA at 530VAC
Vibration 10~500Hz, 2G 10 minutes / 1 cycle, period of 60 minutes each along X, Y, Z axes
Safety standards UL508 approved ; IEC60950-1 CB approved by SIQ ; Design refer to GL
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level
Connection I/P: 3 poles, O/P: 4 poles screw DIN terminal
Dimension (LxWxH) 40x125.2x113.5
Packing 20pcs / 14kg
