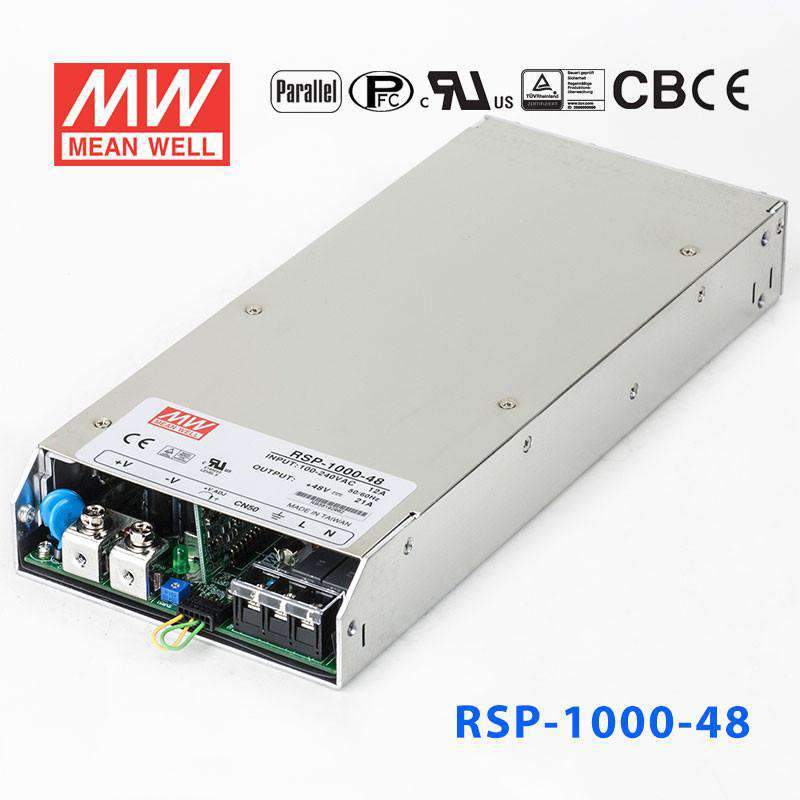

RSP-1000-48

RSP-1000-48

$186.70 - $186.70
$186.70
$186.70 - $186.70
$186.70
Availability:
Only 2 left!
Place your order within --:--:-- to ensure shipment Today
Quantity Prices
Quantity
Unit Price
10+
$177.37
20+
$173.63
50+
$169.90
100+
$166.16
200+
$162.43
*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Features

Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC fan
Vo can be trimmed by external resistor or external control signal
Built-in current sharing
Built-in remote sense and ON/OFF control
Built-in auxiliary power
DC OK signal
5 years warranty

General Specification

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current (max.) Cold start, 40A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection Range 105%~125%
Overload protection Type Constant current limiting, auto-recovery
Over voltage protection Range 115%~135%
Over voltage protection Type Shut down O/P voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -20~+60°C
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2
Connection Input 3P / 10mm pitch terminal block with cover
Connection Output Copper pillars
Dimension (LxWxH) 295x127x41
Case No. 952B
Packing 1.95kg; 6pcs / 12.7kg / 1.15CUFT

RSP-1000 series
