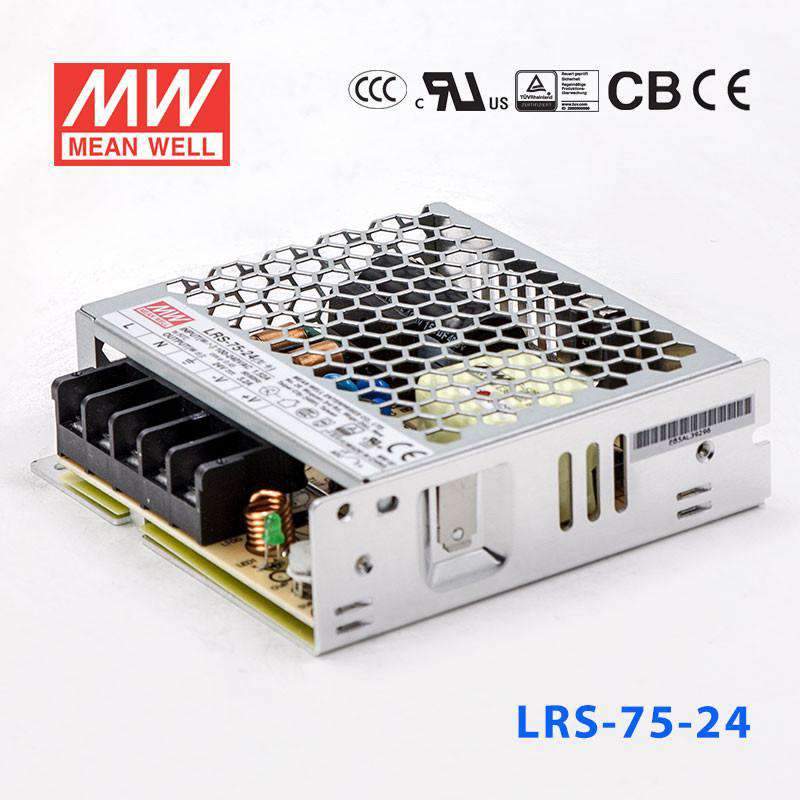

LRS-75-24

• Universal AC input / Full range
• Output: 24V, 3.2A, 76.8W
• Supports 300 VAC surge input for 5 seconds
• No-load power consumption <0.3W
• Miniature size and low 1U profile
• High operating temperature up to 70°C
• Protections: Short circuit / Overload / Overvoltage / Overtemperature
• Natural air convection cooling
• Compliance with IEC / EN 60335-1 (PD3) and IEC / EN 61558-1, 2-16 for household appliances
• Operating altitude up to 5000 meters (Note 7)
• Withstands 5G vibration test
• High efficiency, long life, and high reliability
• Power-on LED indicator
• Overvoltage category III
• 100% full load burn-in test

Applications

• Industrial automation machinery
• Industrial control system
• Mechanical and electrical equipment
• Instruments, devices, or electronic apparatus
• Household appliances

Description

The LRS-75 series is a 75W enclosed-type single-output power supply with a low-profile 30mm design. Adopting a full-range input of 85 ~ 264VAC, the entire series provides an output voltage line of 5V, 12V, 15V, 24V, 36V, and 48V.
In addition to its high efficiency of up to 91.5%, the metal mesh casing design enhances heat dissipation, allowing the LRS-75 series to operate from -30°C to 70°C under natural air convection without a fan. With an extremely low no-load power consumption (less than 0.3W), it enables the end system to easily meet global energy requirements. The LRS-75 features complete protection functions and 5G anti-vibration capability; it complies with international safety standards such as TUV EN2368-1, EN60335-1, EN61558-1 / -2-16, UL62368-1, and GB4943. The LRS-75 series serves as a high-cost-performance power supply solution for various industrial applications.
