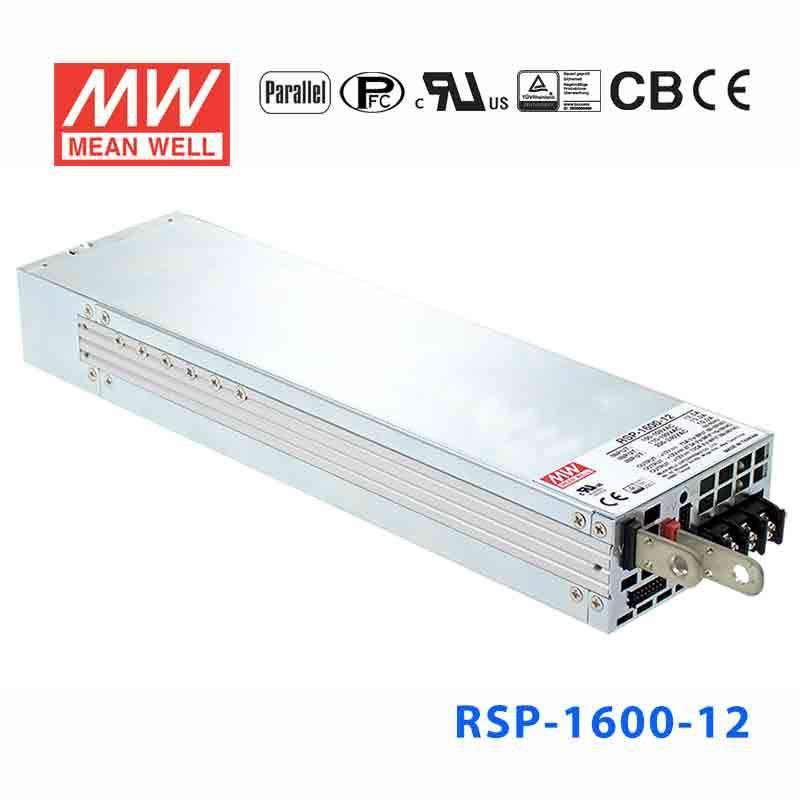

RSP-1600-12

Name: RSP-1600-12
Brand: MEAN WELL
Price: 332.89 USD
Availability: OutOfStock

$332.89

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$316.25

20+

$309.59

50+

$302.93

100+

$296.27

200+

$289.61

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

12V

Rated Current

125A

Power Rating

1500W

Waterproof

Non-waterproof

Dimensions

11.81 x 3.34 x 1.61 in

Weight

4.62 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range(Withstand 300VAC surge input for 5 seconds)

Built-in active PFC function

High efficiency up to 93%

Forced air cooling by built-in DC fan

Output voltage and constant current level programmable

Active current sharing up to 9600W (5+1)

Built-in remote ON-OFF control / remote sense / auxiliary power /DC OK signal /OTP alarm signal

Protections:Short circuit/ Overload / Over voltage / Over temperature

Optional PMBus or CANBus protocol

5 years warranty

General Specification

AC input voltage range	90~264VAC ; 127~370VDC
AC inrush current (max.)	Cold start, 35A at 230VAC
Overload protection	105%~115% Constant current limiting, unit will shut down o/p voltage after 5 sec. re-power on to recover
Over temperature protection	Shut down o/p voltage, recovers automatically after temperature goes down
Setup, rise, hold up time	1500ms,60ms,16ms at full load
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature	-30~+70ºC(refer to output derating curve)
Safety standards	UL60950-1,TUV EN60950-1 approved
EMC standards	EN55022(CISPR22) Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3, EN61000-6-2
Connection input	3P/10mm pitch terminal block with cover
Dimension (LxWxH) (mm)	300x85x 41mm
Packing	6pcs / 13.6kg
