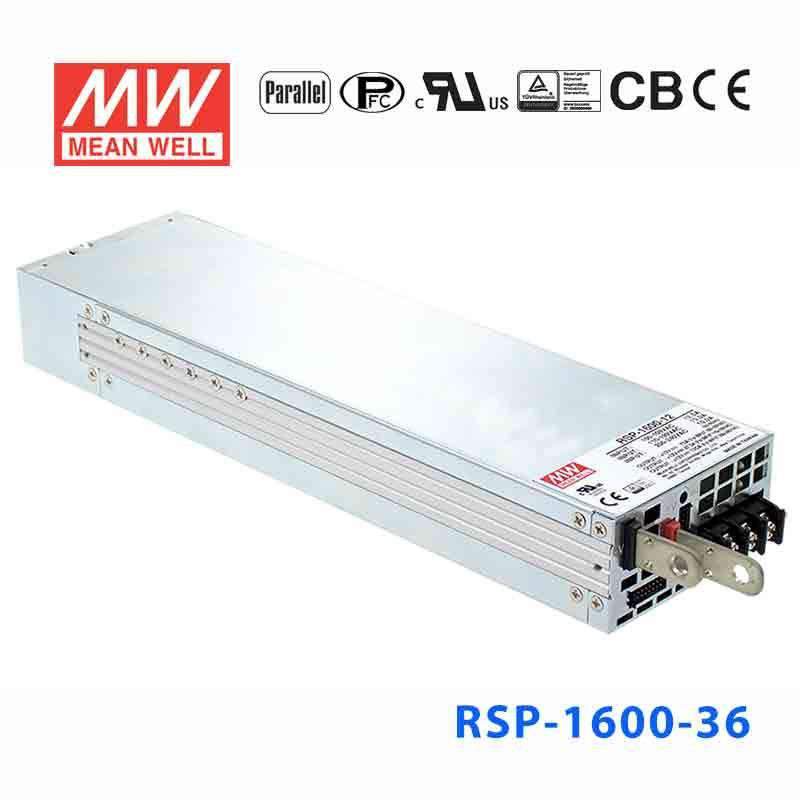

RSP-1600-36

Sold out
Original price $332.89 - Original price $332.89
Original price
$332.89
$332.89 - $332.89
Current price $332.89
Availability:
Out of stock
Quantity Prices
Quantity
Unit Price
10+
$316.25
20+
$309.59
50+
$302.93
100+
$296.27
200+
$289.61
*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Features

Universal AC input / Full range(Withstand 300VAC surge input for 5 seconds)
Built-in active PFC function
High efficiency up to 93%
Forced air cooling by built-in DC fan
Output voltage and constant current level programmable
Active current sharing up to 9600W (5+1)
Built-in remote ON-OFF control / remote sense / auxiliary power /DC OK signal /OTP alarm signal
Protections:Short circuit/ Overload / Over voltage / Over temperature
Optional PMBus or CANBus protocol
5 years warranty

General Specification

AC input voltage range 90~264VAC ; 127~370VDC
AC inrush current (max.) Cold start, 35A at 230VAC
Overload protection 105%~115% Constant current limiting, unit will shut down o/p voltage after 5 sec. re-power on to recover
Over temperature protection Shut down o/p voltage, recovers automatically after temperature goes down
Setup, rise, hold up time 1500ms,60ms,16ms at full load
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature -30~+70ºC(refer to output derating curve)
Safety standards UL60950-1,TUV EN60950-1 approved
EMC standards

EN55022(CISPR22) Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024, EN61204-3, EN61000-6-2

Connection input 3P/10mm pitch terminal block with cover
Dimension (LxWxH) (mm) 300x85x 41mm
Packing 6pcs / 13.6kg
