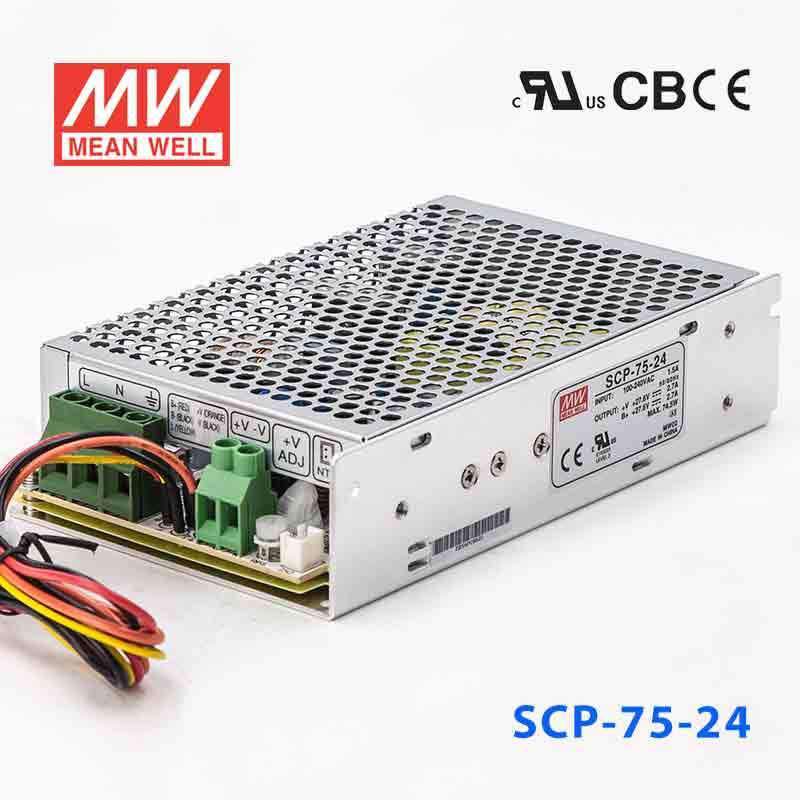

SCP-75-24

Name: SCP-75-24
Brand: MEAN WELL
Availability: OutOfStock

$0.00

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$0.00

20+

$0.00

50+

$0.00

100+

$0.00

200+

$0.00

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

27.6V

Rated Current

2.7A

Power Rating

74.5W

Waterproof

Non-waterproof

Dimensions

6.25 x 3.81 x 1.49 in

Weight

1.10 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range

LED indicator for power on

No load power consumption <0.75W

Protections: Short circuit / Over current / Over voltage / Battery polarity (by fuse)

Temperature compensation function (by external thermistor)

Cooling by free air convection

100% full load burn-in test

2 years warranty

General Specification

AC input voltage range	85~264VAC/ 120~370VDC
AC inrush current	Cold start, 45A
DC adjustment range	95%~115% rated output voltage
Overload protection	120%~165%, hiccup mode, auto-recovery
Over voltage protection	120%~140%, rated output voltage
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG:1.5kVAC, 1minute
Working temperature	-20~+60°C (refer to output derating curve)
Safety standards	UL60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-1
Connection	I/P: 3 poles, O/P: 2 poles screw terminal
Packing	0.5kg ; 30pcs / 16.0kg / 1CUFT
Dimension (LxWxH) (mm)	159x 97x 38 mm
Setup, rise, hold up time	500ms, 30ms, 50ms at full load and 230VAC
