TN-1500-112F

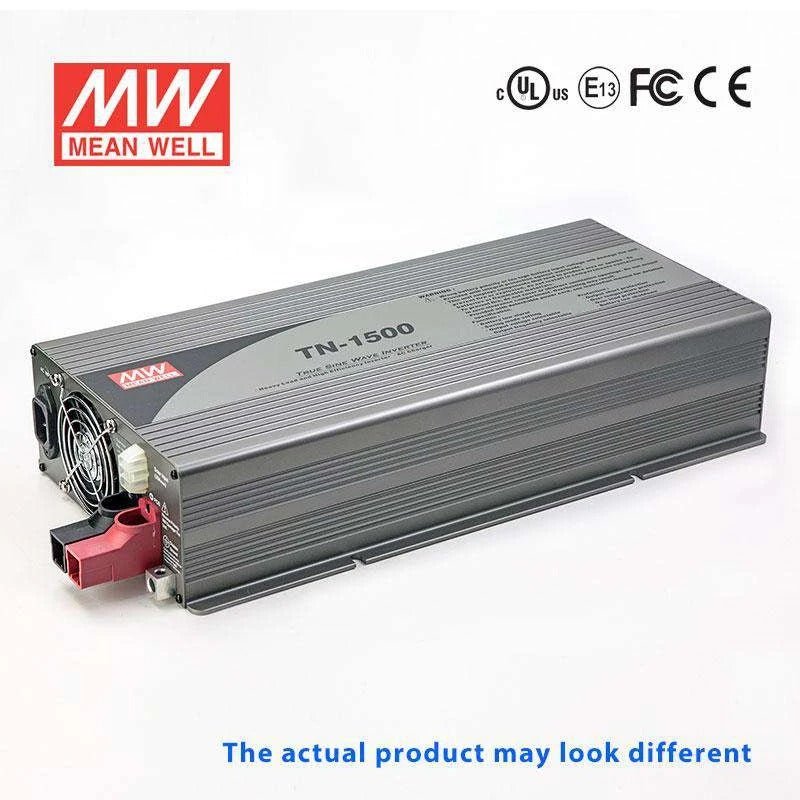

Name: TN-1500-112F
Brand: MEAN WELL
Availability: OutOfStock

$0.00

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$0.00

20+

$0.00

50+

$0.00

100+

$0.00

200+

$0.00

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

110V

Power Rating

1500W

Waterproof

Non-waterproof

Dimensions

16.53 x 8.66 x 3.46 in

Weight

15.10 lbs

Features

True sine wave output (THD<3%)

High surge power up to 3000W

High efficiency up to 91%

Standby saving mode can be selectable

Front panel indicator for operation status

Thermostatically controlled cooling fan

Power ON-OFF switch

Protections: Short circuit / Overload / Over voltage

Built-in solar / AC charger

Computer-based monitoring software (Note.7)

3 years warranty

General Specification

AC output voltage range	100/110/115/120VAC;200/220/230/240VAC adjustable via front panel or monitoring software
AC output waveform	True sine wave,THD<3.0%
Overload temperature	Shut down o/p voltage, re-power on to recover,by internal RTH3 detect on heatsink of power transistor
Overload	Shut down o/p voltage, re-power on to recover
Withstand voltage	Bat I/P - AC I/P:3.0KVAC Bat.I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
Working temperature	0~+60°C (refer to output derating curve )
Safety standards	EN60950-1 approved
EMC standards	EN55022 class B, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EN61000-4-2,3,4,5,6,8,11
Dimension (LxWxH)	420x220x88mm
Packing	2pcs / 15.7kg
