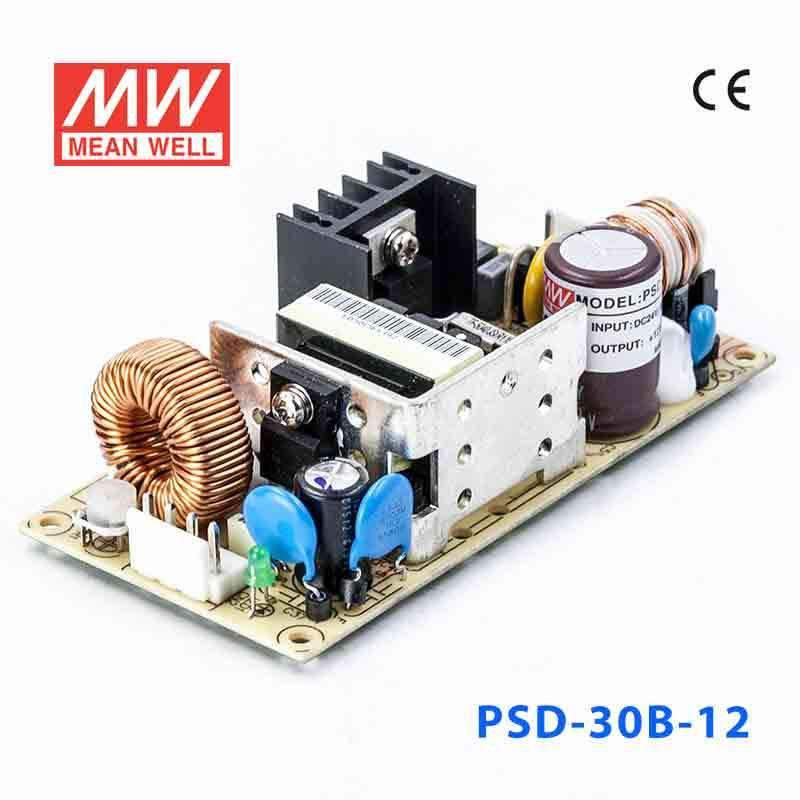

PSD-30B-12

PSD-30B-12

Sold out
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Availability:
Out of stock
Quantity Prices
Quantity
Unit Price
10+
$0.00
20+
$0.00
50+
$0.00
100+
$0.00
200+
$0.00
*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Features

2: 1 wide input range
1500VAC I / O isolation
Built-in EMI filter, low ripple noise
Protections: Short circuit / Overload / Over voltage / Reverse polarity
100% full load burn-in test
Low cost, high reliability
Cooling by free air convection
2 years warranty

General Specification

DC adjustment range 5V: 4.5 to 5.5 V, 12 V: 11 to 13.5 V, 24 V 22 to 26 V
Overload protection 105% ~ 150% hiccup mode, auto-recovery
Over voltage protection 115% ~ 150% rated output voltage
Withstand voltage I / PO / P: 1.5 k VAC, I / P-FG: 1.5 k VAC, 1 minute
Line and load regulation ± 1% (max.)
Working temperature -20 ~ + 60 ° C (refer to output derating curve)
Connection 3P, 4P / 3.96mm pitch, JST B3P / B4P-VH-B
EMC standards EN55022 class B, EN61000-4-2,3,4,6,8, EN55024
Dimension (LxWxH) (mm) 101.6x 50.8x 30 mm
