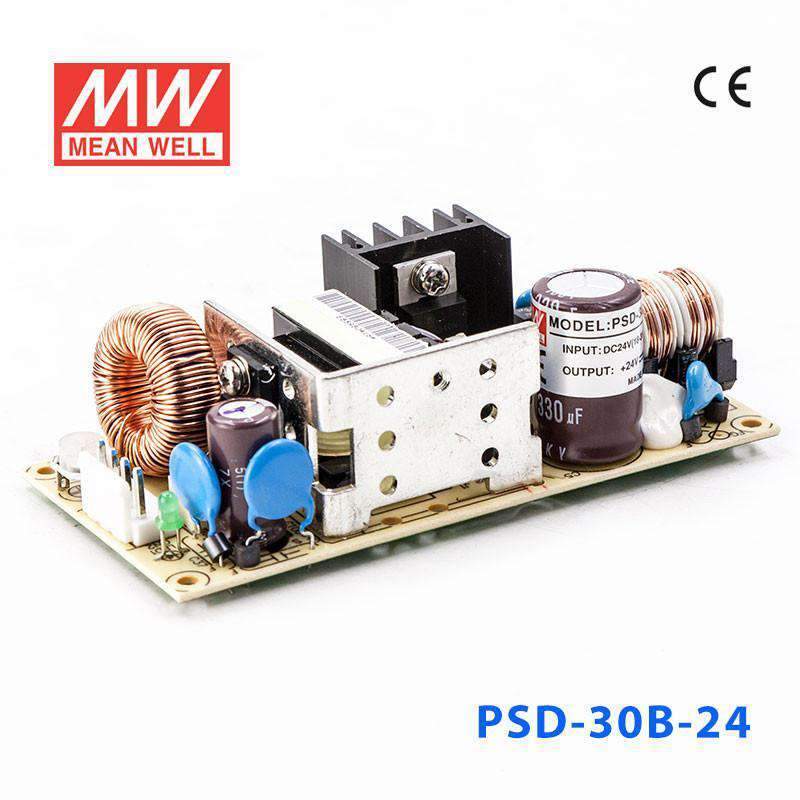

PSD-30B-24

Name: PSD-30B-24
Brand: MEAN WELL
Availability: OutOfStock

$0.00

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$0.00

20+

$0.00

50+

$0.00

100+

$0.00

200+

$0.00

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

24V

Rated Current

1.25A

Power Rating

30W

Waterproof

Non-waterproof

Dimensions

4 x 2 x 1.18 in

Weight

0.33 lbs

Features

2: 1 wide input range

1500VAC I / O isolation

Built-in EMI filter, low ripple noise

Protections: Short circuit / Overload / Over voltage / Reverse polarity

100% full load burn-in test

Low cost, high reliability

Cooling by free air convection

2 years warranty

General Specification

DC adjustment range	5V: 4.5 to 5.5 V, 12 V: 11 to 13.5 V, 24 V 22 to 26 V
Overload protection	105% ~ 150% hiccup mode, auto-recovery
Over voltage protection	115% ~ 150% rated output voltage
Withstand voltage	I / PO / P: 1.5 k VAC, I / P-FG: 1.5 k VAC, 1 minute
Line and load regulation	± 1% (max.)
Working temperature	-20 ~ + 60 ° C (refer to output derating curve)
Connection	3P, 4P / 3.96mm pitch, JST B3P / B4P-VH-B
EMC standards	EN55022 class B, EN61000-4-2,3,4,6,8, EN55024
Dimension (LxWxH) (mm)	101.6x 50.8x 30 mm
