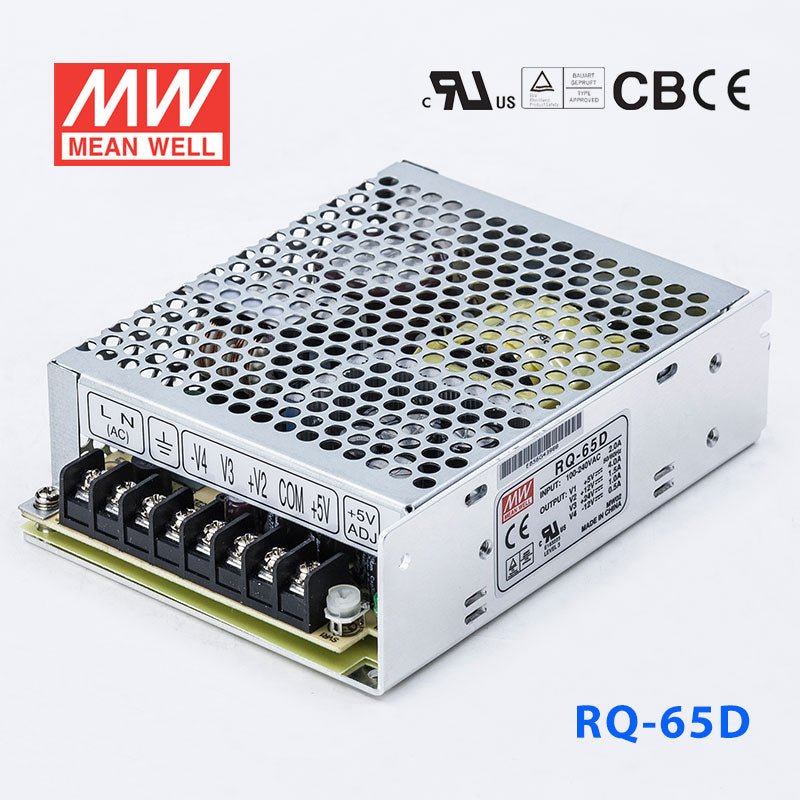

RQ-65D

Name: RQ-65D
Brand: MEAN WELL
Price: 27.13 USD
Availability: OutOfStock

$27.13

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$25.77

20+

$25.23

50+

$24.69

100+

$24.15

200+

$23.60

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

Rated Current

Power Rating

68W

Waterproof

Non-waterproof

Dimensions

5.07 x 3.85 x 1.49 in

Weight

0.97 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Protections: Short circuit / Overload / Over voltage

100% full load burn-in test

Universal AC input/Full range

LED indicator for power on

High operating temperature up to 70°C

Withstand 5G vibration test

All using 105°C long life electrolytic capacitors

High efficiency, long life and high reliability

Cooling by free air convection

3 years warranty

General Specification

AC input voltage range	88~264VAC, 125~373VDC
AC inrush current (max.)	50A at 230VAC
DC adjustment range	±10% by potentiometer for CH1
Overload protection	110%~150%
Over voltage protection	115%~135% rated output voltage, hiccup mode, auto-recovery
Withstand voltage	I/P - O/P: 3KVAC, I/P - FG: 2KVAC, O/P - FG: 0.5KVAC
Working temperature	-25~+70°C
Vibration	10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes
Safety standards	UL62368-1, TUV EN62368-1 approved
EMC standards	EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2)
Connection	Terminal block for input and output
Dimension (LxWxH)	129x 98x 38
Case No.	903
Packing	30pcs /13.2kg
