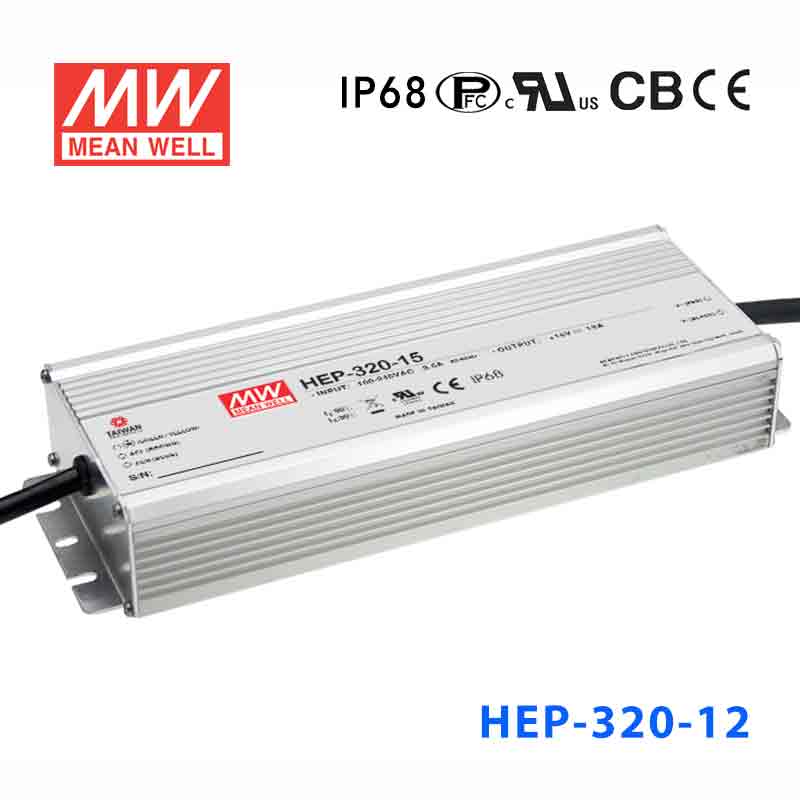

HEP-320-12A

Name: HEP-320-12A
Brand: MEAN WELL
Price: 148.98 USD
Availability: OutOfStock

$148.98

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$141.53

20+

$138.55

50+

$135.57

100+

$132.59

200+

$129.61

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

12V

Rated Current

22A

Power Rating

264W

Waterproof

IP65

Dimensions

9.92 x 3.54 x 1.72 in

Weight

4.14 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input (up to 305VAC) / Full range

Built-in active PFC function

High efficiency up to 95%

Fanless design, cooling by free air convection

-55~+70ºC wide operating range

Aluminum case and filling with heat-conducted glue

IP65 design, optional IP68 rated model available

Meet 6KV surge immunity level

Withstand the 10G vibration test

Operating altitude up to 5000 meters

Protections: Short circuit / Over current / Over voltage / Over temperature

6 years warranty

General Specification

AC input voltage range	85~264VAC (277VAC operational); 120~370VDC(390VDC operational)
AC inrush current (max.)	COLD START 70A at 230VAC
DC adjustment range	-10%~+10% rated output voltage (A-Type only)
Current adjustment range	60%~100%
Over current protection	105%~125% constant current limiting, auto-recovery
Over-voltage protection	105%~135% rated output voltage
Setup, rise, hold up time	2500ms, 80ms, 15ms at full load and 230VAC
Withstand voltage	I/P-O/P: 3.75KVAC, I/P-FG: 2KVAC, O/P-FG: 1.5KVAC
Working temperature	-55~+70ºC (refer to output derating curve)
Safety standards	UL62368-1,IEC62368-1, IP65 (or IP68 for HEP-320 Blank-Type), EAC TP TC 004 approved ; Design refer to BS EN/EN62368-1
EMC standards	EN55022 class B, EN61000-3-2,3, EAC TP TC 020
Connection Input	SJTW 18AWGx3C(30cm)
Connection Output	SJTW 14AWGx2C (30cm)+ SJTW 14AWGx2C (30cm)
Dimension (LxWxH) (mm)	252x 90 x 43.8
