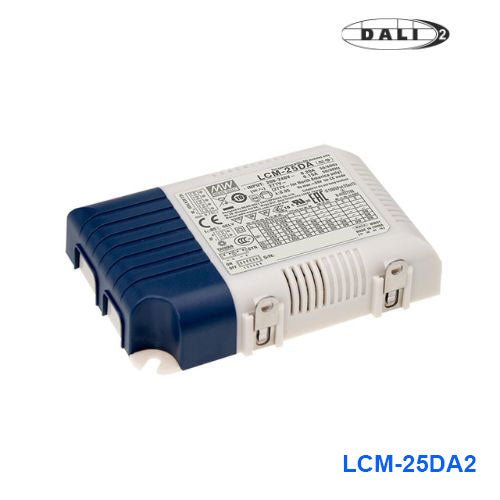

LCM-25DA2

Name: LCM-25DA2
Brand: MEAN WELL
SKU: 025-1645
Price: 25.7 USD
Availability: OutOfStock

$25.70

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$24.42

20+

$23.90

50+

$23.39

100+

$22.87

200+

$22.36

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

41V

Rated Current

0.7A

Power Rating

25W

Waterproof

IP20

Dimensions

4.13 x 2.67 x 0.90 in

Weight

0.37 lbs

Features

Constant current mode output with multiple levels selectable by dip switch

Plastic housing with class II design

Built-in active PFC function

Standby power consumption<0.5W(EL)

Functions: 3 in 1 dimming (dim-to-off); synchronization up to 10 units

3 years warranty

General Specification

AC input voltage range	180~277VAC; 254~392VDC
AC inrush current (Typ.)	COLD START 20A(twidth=260μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
Short circuit protection	Constant current limiting, recovers automatically after fault condition is removed
Over temperature protection	Shut down o/p voltage, recovers automatically after temperature goes down
Setup time	500ms / 230VAC
Withstand voltage	I/P-O/P:3.75KVAC
Working temperature	Tcase=-30 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
Safety standards	ENEC EN61347-1, EN61347-2-13
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020
Dimension (LxWxH)(mm)	1056823mm
Packing	72pcs/12.5Kg
