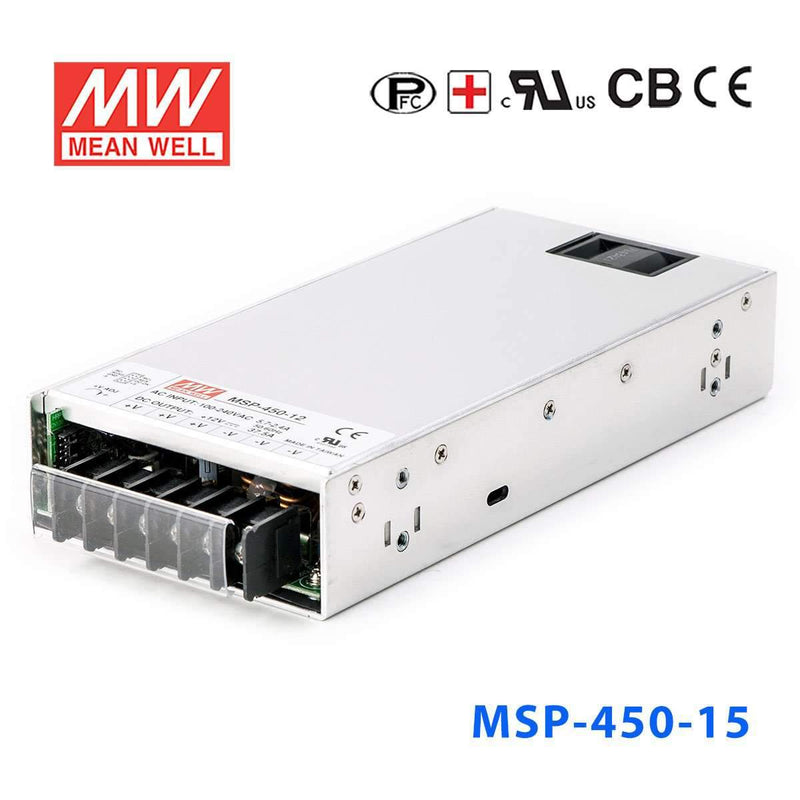

MSP-450-15

Name: MSP-450-15
Brand: MEAN WELL
Price: 165.87 USD
Availability: OutOfStock

$165.87

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$157.58

20+

$154.26

50+

$150.94

100+

$147.62

200+

$144.31

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

15V

Rated Current

30A

Power Rating

450W

Waterproof

Non-waterproof

Dimensions

8.58 x 4.13 x 1.61 in

Weight

2.62 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range

Built-in active PFC function, PF>0.95

High efficiency up to 89.5%

Withstand 300VAC surge input for 5 seconds

Protections: Short circuit / Overload / Over voltage / Over temperature

Built-in constant current limiting circuit

Medical safety approved (MOOP level)

Built-in cooling Fan ON-OFF control

Built-in DC OK signal

Built-in remote ON-OFF control

No load power consumption<0.6W

Standby 5V@0.3A

Built-in remote sense function

5 years warranty

General Specification

AC input voltage range	85~264VAC ; 120~370VDC
AC inrush current (max.)	35A/115VAC 70A/230VAC
Over current protection	105% ~135% rated output power;Protection type : Constant current limiting for Vo=50 ~ 100% of rated voltage, recovers automatically after fault condition is removed
Over voltage protection	110%~140% Protection type : Shut down o/p voltage, re-power on to recover
Withstand voltage	I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Working temperature	-40~+70ºC (refer to output derating curve)
Safety standards	ANSI/AAMI ES60601-1, IEC60601-1 approved
EMC standards	Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3
Dimension (LxWxH)(mm)	218x 105x 41 mm
