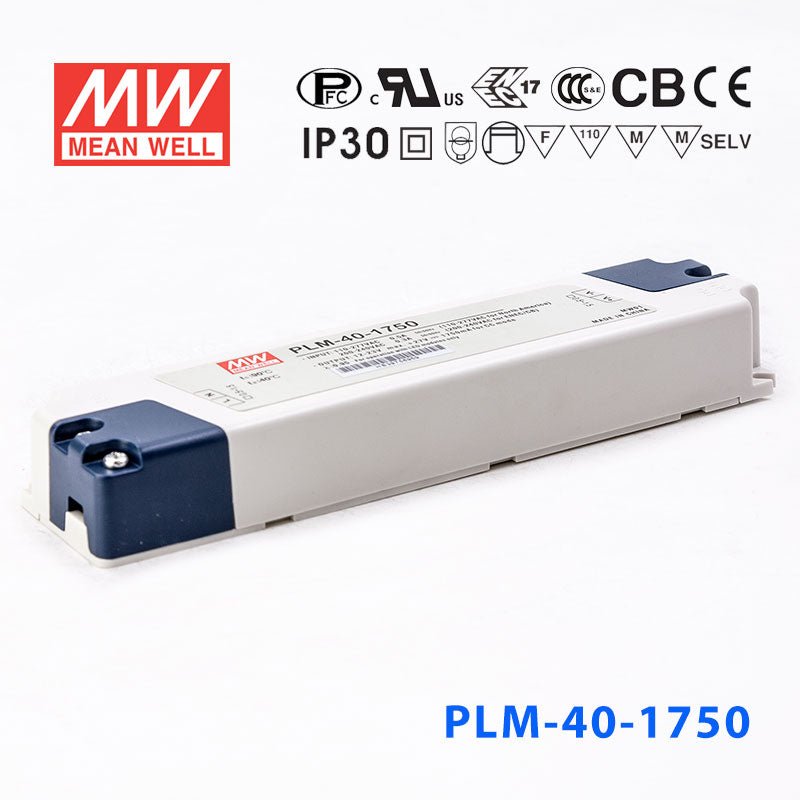

PLM-40-1750

Name: PLM-40-1750
Brand: MEAN WELL
Price: 25.42 USD
Availability: OutOfStock

$25.42

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$24.15

20+

$23.64

50+

$23.13

100+

$22.62

200+

$22.12

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

27V

Rated Current

1.75A

Power Rating

40.25W

Waterproof

Non-waterproof

Dimensions

6.88 x 1.65 x 0.94 in

Weight

0.38 lbs

Features

230VAC only or Full range(up to 295VAC) models available

Built-in active PFC function

Constant current design

Protections: Short circuit

Cooling by free air convection

Fully isolated plastic case

Class II power unit, no FG

Class 2 power unit (for PLM-25-500/700/1050)

No load power consumption < 0.5W

High reliability, low cost

2 years warranty

General Specification

AC input voltage range	Blank type: 110 ~ 295VAC 156 ~ 417VDC; E type: 180 ~ 295VAC 254~ 417VDC
AC inrush current (max.)	COLD START 15A(twidth=50μs measured at 50% Ipeak) at 230VAC
DC adjustment range
Current adjustment range
Short circuit protection	Hiccup mode, auto-recovery
Over temperature protection	Hiccup mode, auto-recovery
Setup time	Blank type: 500ms / 115VAC, 230VAC at full load; E type: 500ms / 230VAC at full load
Withstand voltage	I/P-O/P: 3.75kVAC
Working temperature	-30~+45ºC
Safety standards	UL8750, ENEC EN61347-1,2-13
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection	DG235-7.2-2P
Dimension (LxWxH) (mm)	1453822mm
Packing	60pcs/8.6Kg
