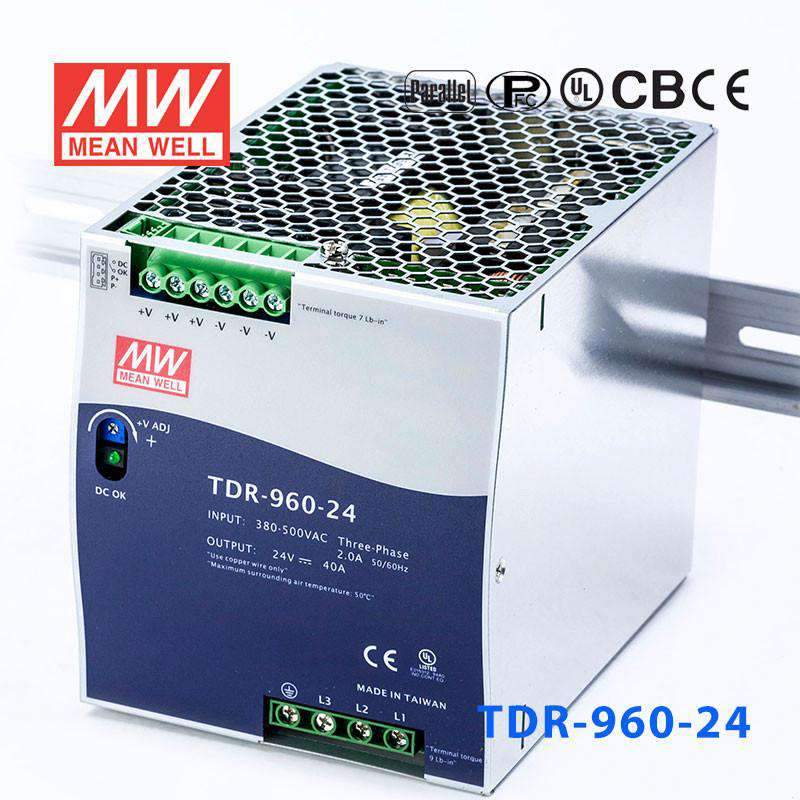

TDR-960-24

Name: TDR-960-24
Brand: MEAN WELL
SKU: 70436
Price: 225.48 USD
Availability: OutOfStock

$225.48

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

10+

$214.21

20+

$209.70

50+

$205.19

100+

$200.68

200+

$196.17

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

24V

Rated Current

40A

Power Rating

960W

Waterproof

Non-waterproof

Dimensions

5.90 x 4.92 x 4.33 in

Weight

5.44 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Input 340~550VAC, 3-phase

Width only 110mm

Built-in active PFC function

High efficiency up to 94.5%

Protections: Short circuit / Overload / Over voltage / Over temp.

Cooling by free air convection

Installed on DIN rail TS-35 / 7.5 or 15

EN61000-6-2(EN50082-2) industrial immunity level

Current sharing up to 3840W (3+1)

Built-in DC OK relay contact

3 years warranty

General Specification

AC input voltage range	340~550VAC, 3-phase ( two phase operation possible)
AC input current (Typ.)	2A / 400VAC, 1.4A / 500VAC
AC inrush current (max.)	Cold start, 60A at 400VAC
DC adjustment range	24V: 24~28V, 48V: 48~55V
Overload protection	105%~130% rated output power, constant current limiting, unit will shut down after 3 sec., re-power on to recover
Over voltage protection	29~33V (24V model), 56~65V (48V model), shut down o/p voltage, re-power on to recover
Over temp.	90ºC±5ºC (24V model), 85ºC±5ºC (48V model) shut down o/p voltage, recovers automatically after temperature goes down
Withstand voltage	I/P-O/P:3kVAC I/P-FG:2kVAC O/P-FG:0.5kVAC O/P-DC OK: 0.5kVAC
Working temperature	-30~+70°C (refer to output derating curve)
Safety standards	UL508 approved; IEC60950-1 CB approved by SIQ
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level
Connection	I/P: 3 poles, O/P: 6 poles screw DIN terminal
Dimension (LxWxH)	110x 125.2x 150 mm
CASE	214A
