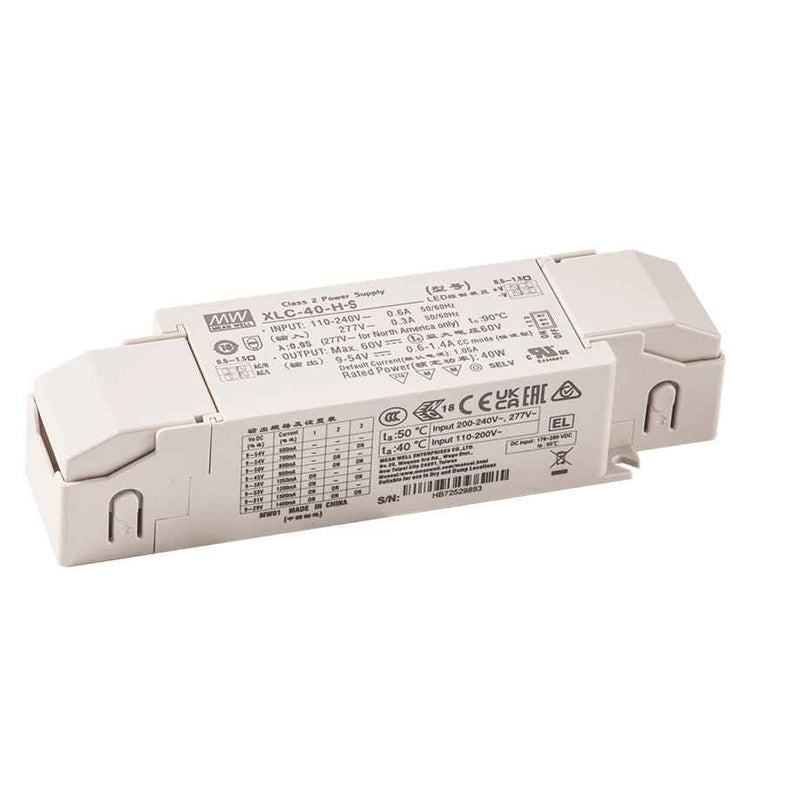

XLC-40-24-S

Features:

• Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
• Constant voltage mode output (12V/24V)
• Plastic housing with class II/2 and PFC design
• Flicker-free, complying with IEEE1789/ErP
• Standby power consumption <0.5W
• Meet emergency lighting (EL) function application
• Minimum dimming level 0.1% (DALI-2 DT6)
• Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
• 5 years warranty

General Specification

AC input voltage range

100 ~ 305VAC 141 ~ 431VDC

AC inrush current (max.)

COLD START 10A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410

Overload protection

105 ~ 150% rated output power

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over-voltage protection

| 13 ~ 16V | 26 ~ 32V |

Shut down and latch off o/p voltage, and re-power on to recover

Over temperature protection

Shut down output voltage, recovers automatically after fault condition is removed

Withstand voltage

I/P-O/P:3.75KVAC

Working temperature

Tcase=-25 ~ 90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)

Safety standards

ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations; BS EN/EN62384 independent, GB19510.14, GB19510.1, EAC TP TC 004 approved;

Dimension (LxWxH)

147x40x32mm
